VENUSHUB MONITOR

24/7 Live Video & Audio Stream Monitoring

Know about a problem before your viewers do. VenusHub Monitor watches every live channel around the clock: the transport stream, the picture and the sound. It alerts your team the moment something goes wrong, and shows exactly where the fault started.

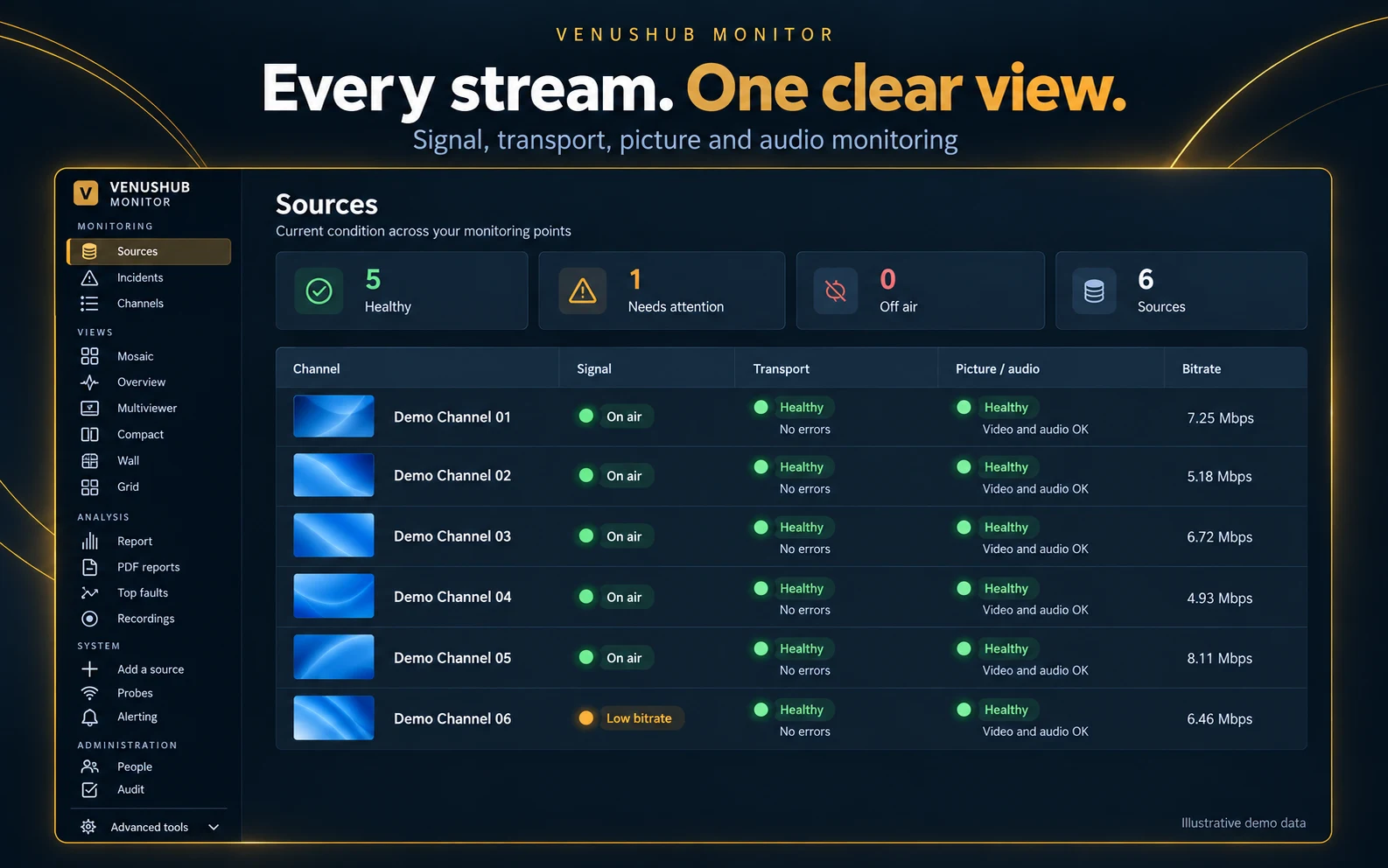

VenusHub Monitor sources view showing six demo channels with signal, transport, picture and audio status and bitrate

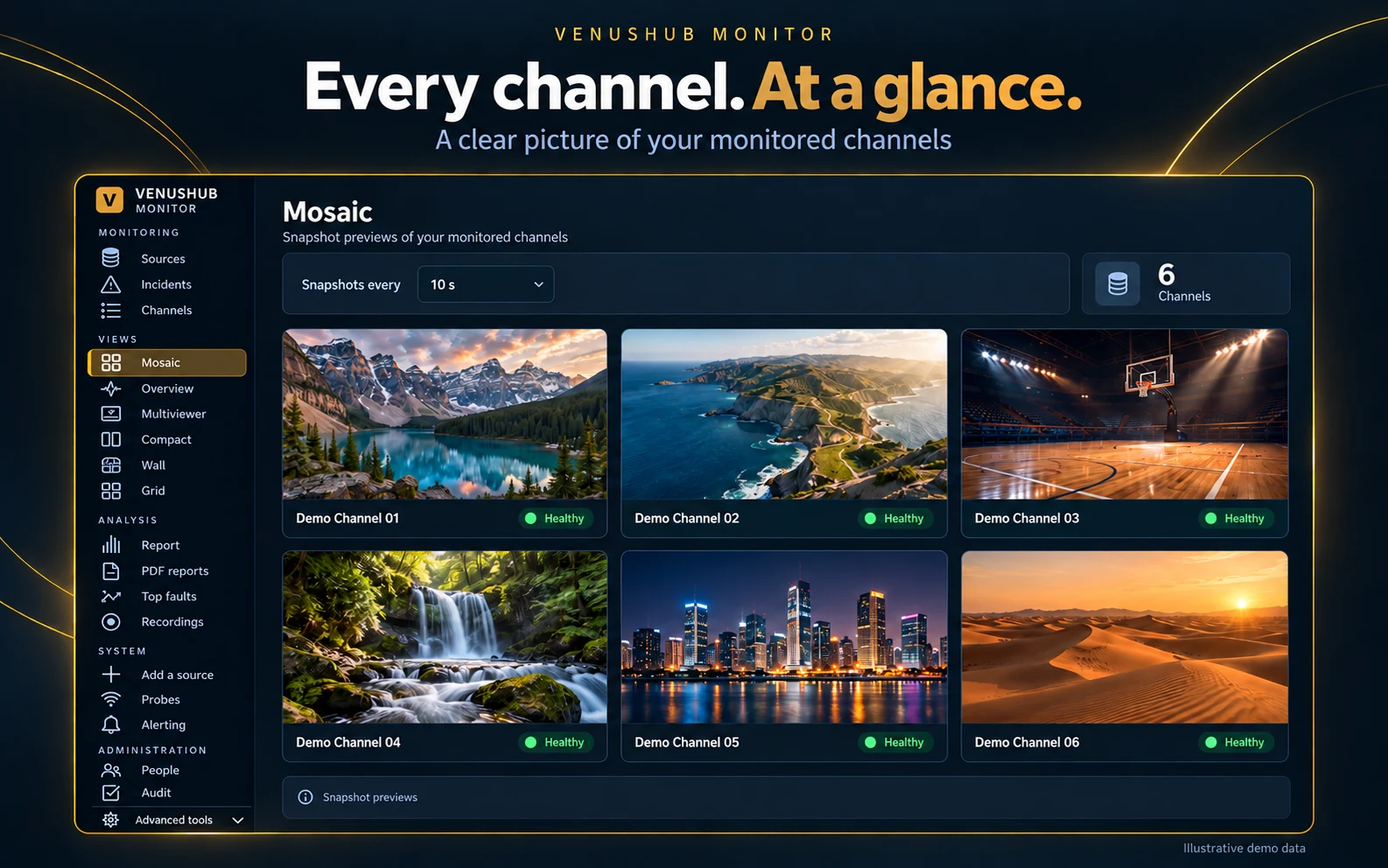

VenusHub Monitor mosaic view with snapshot previews of six demo channels, all healthy

EVERY INPUT YOU USE

Monitor every protocol, in the cloud or on site

  • SRT (caller or listener, with encryption), HLS and DASH, UDP/RTP unicast and multicast, RIST and HTTP transport streams
  • Checks your HLS playlists and every rendition of your bitrate ladder
  • Monitor in the cloud, or at your own sites with remote probes, from a single dashboard

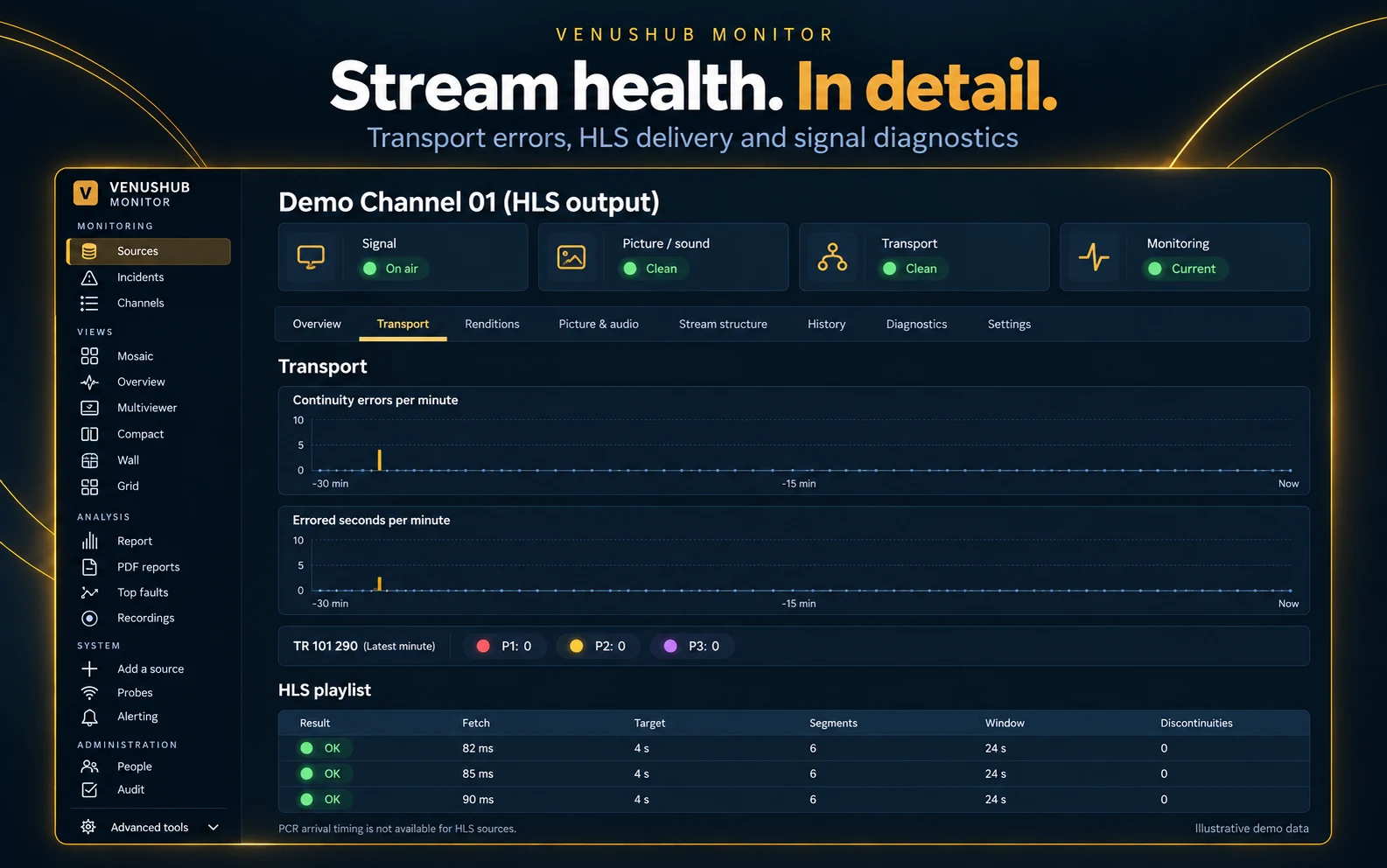

VenusHub Monitor transport view for an HLS channel with continuity errors and errored seconds per minute, TR 101 290 counts and HLS playlist checks

TRANSPORT STREAM ANALYSIS

Transport stream analysis (TR 101 290)

  • Priority 1 and 2 errors: continuity errors, sync loss, PAT/PMT repetition, PCR accuracy and transport errors
  • Lost packets and errored seconds, minute by minute
  • Bitrate per channel and per PID, plus service, PID and table changes
  • Subtitle and teletext presence

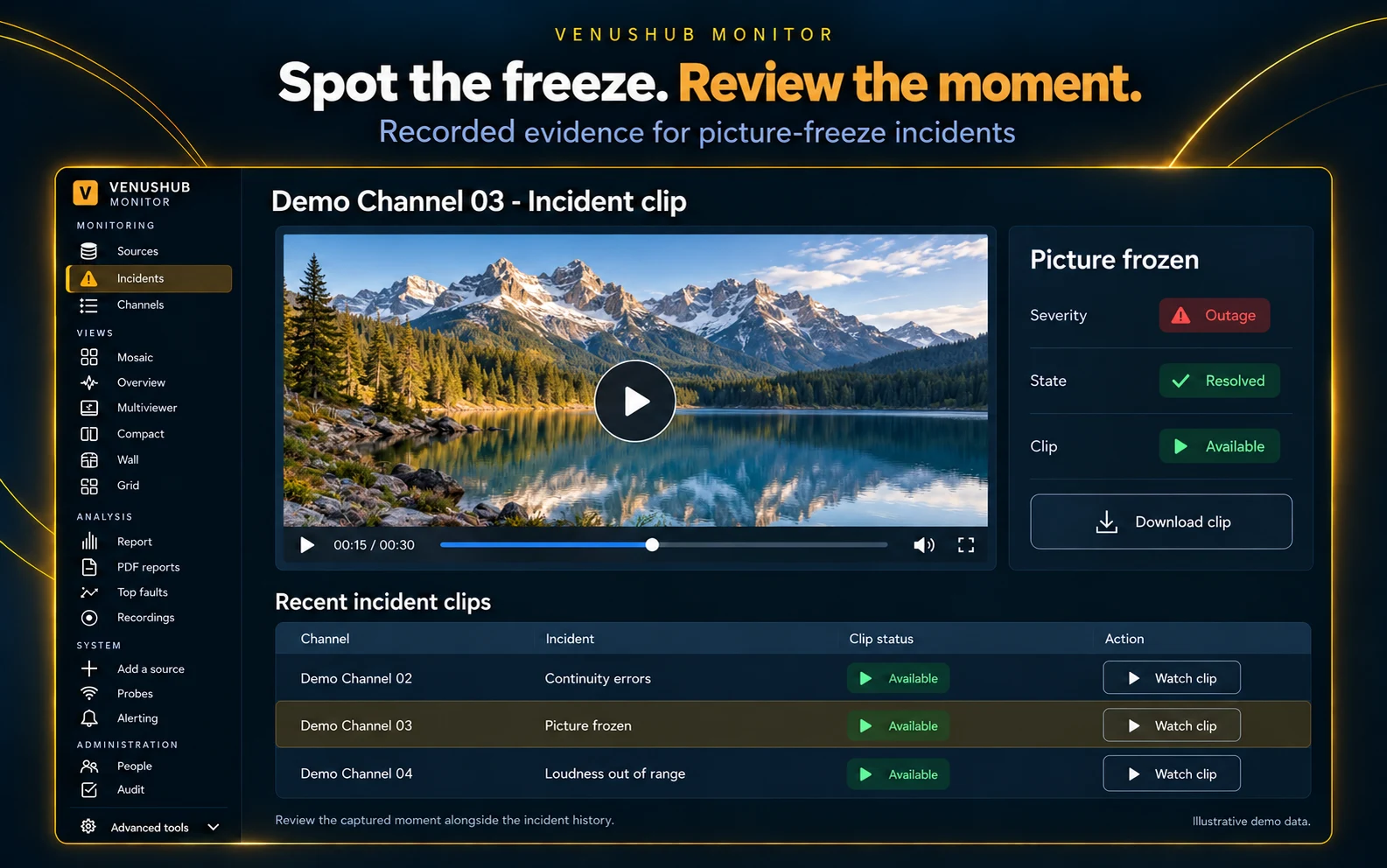

VenusHub Monitor incident clip screen for a picture frozen incident, with recorded video evidence, severity, state and a list of recent incident clips

PICTURE & SOUND

Picture and sound checks

  • Black and frozen picture
  • Silence and audio loss
  • Loudness to EBU R128 (LUFS, true peak, loudness range)
  • Decoding errors in the video and audio

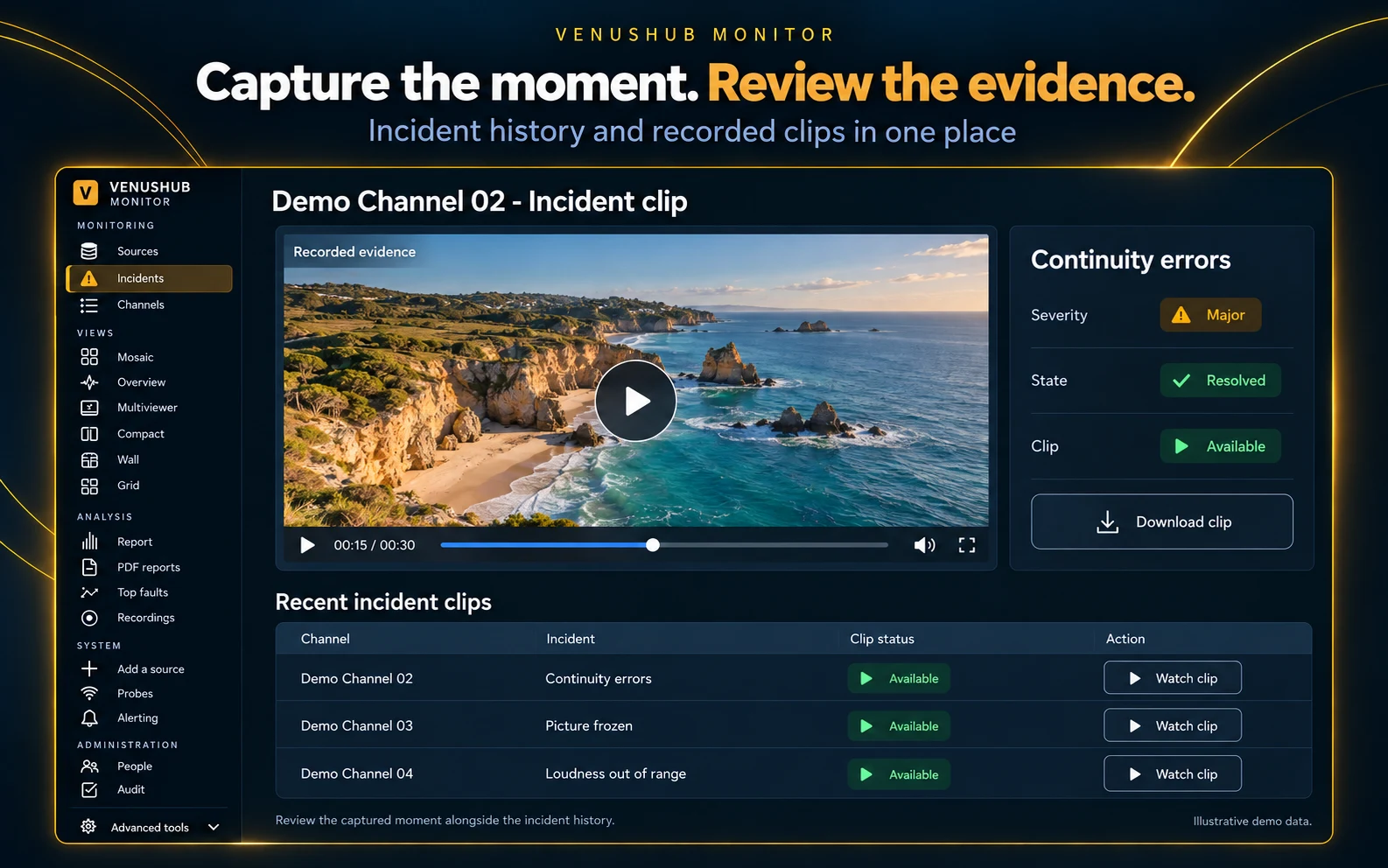

VenusHub Monitor incident clip screen with recorded video evidence, severity and state of a continuity errors incident and a list of recent incident clips

ALERTS & EVIDENCE

Alerts, incidents and evidence

  • Instant alerts by email and Telegram, routed to the right team
  • Incidents to acknowledge, assign and resolve, with severity levels
  • An automatic video clip of every fault, so you can see what viewers saw
  • Maintenance windows and mutes, so planned work raises no false alarms
  • A multiviewer and a video wall of all your channels

FAULT ORIGIN REPORT

Find where faults really start

Monitor the same channel at several points, from the head-end and encryption through the CDN edge to the last mile. The fault origin report compares them and shows whether an error came from the source, the network or the delivery. That ends the finger-pointing between your provider, your CDN and your team.

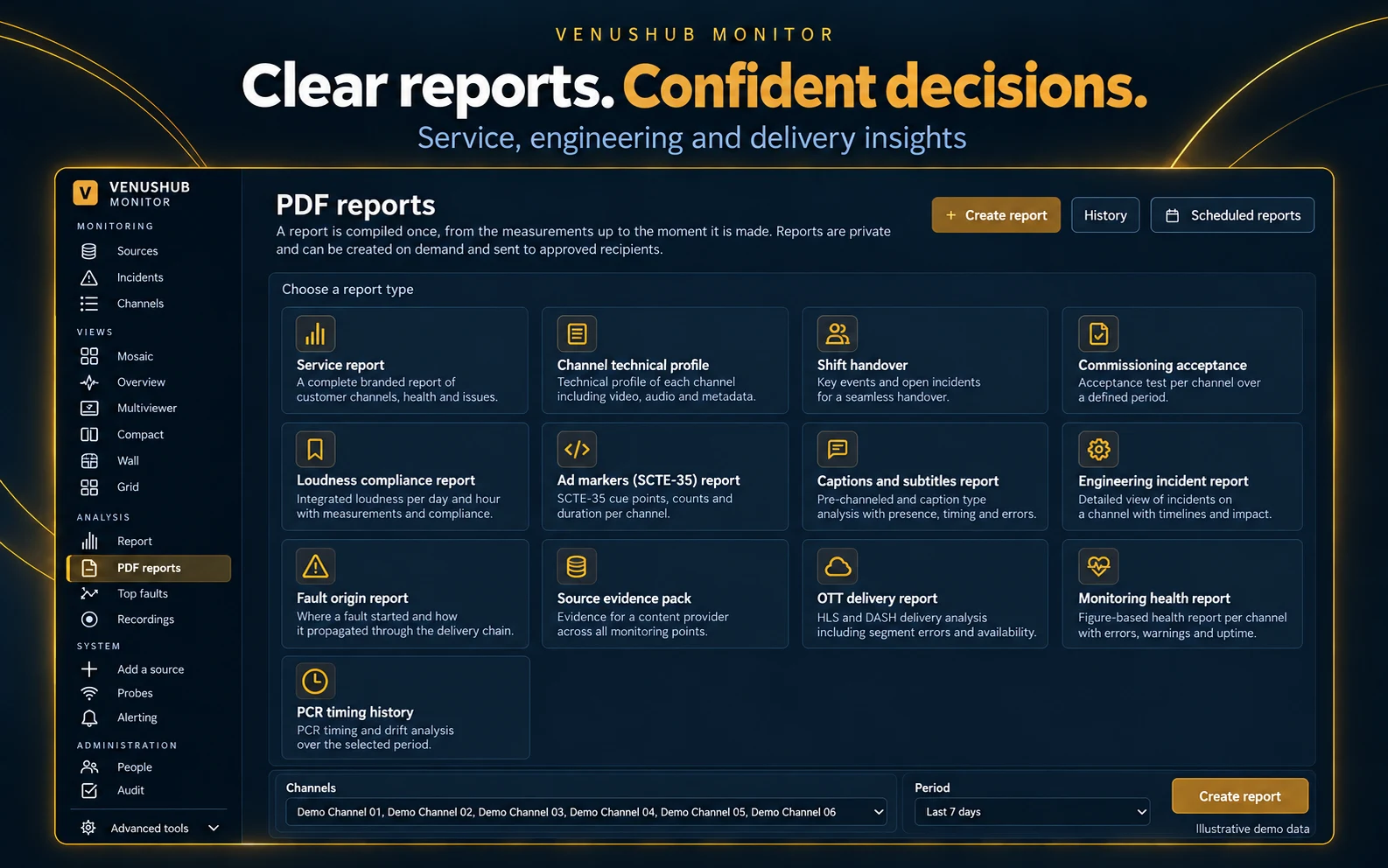

VenusHub Monitor PDF reports screen with report types such as service report, loudness compliance and fault origin

REPORTING

Reports for your team and your customers

  • Daily, weekly and monthly service reports as PDFs: availability, errors and incidents per channel
  • Scheduled reports, approved before they’re sent
  • A customer view and API keys, so your own clients see only their channels

BUILT FOR OPERATORS

Control, access and integrations

Roles for viewers, operators, engineers and admins, with an audit log of every change.

Single sign-on, a REST API and Grafana dashboards.

An interface in English, Greek and Arabic.

WHO IT’S FOR

For anyone who delivers live channels over IP

Broadcasters & teleportsOTT & IPTV platformsChannel distributorsCDN operators

Frequently asked questions

Which protocols do you monitor?

SRT, HLS, DASH, UDP/RTP (unicast and multicast), RIST and HTTP transport streams.

Do I need to install anything?

No. We monitor from the cloud. For channels inside your own network, a small remote probe runs at your site.

How fast are alerts?

Faults are measured every minute, and alerts go out as soon as a fault crosses the limits you set.

Can you show where an error comes from?

Yes. With monitoring at more than one point, the fault origin report shows whether the source, the network or the delivery caused it.

Can my customers see their own channels?

Yes, through a customer view and API keys limited to their channels.

Know about a problem before your viewers do.
